linear potentiometer
BONENS Ip67 Rating Waterdicht Potentiometer Precision Potentiometer 10k Precision Potentiometer
3590 precision multi turn wire wound potentiometer 10K ohm PRODUCT PACKAGING 25 pcs/board, 2 boards(50 pcs)/box,12boxs(600 pcs)large box PRODUCT DESCRIPTION Potentiometer type:Multi turn potentiometer Potentiometer material:wire wound model:3590S-2-103L Resistance: 10K Ω Permissible resistance range: ± 5% Electrical rotation angle: 3600 ° ± 10 °(10 turn) Rated power: 2W (70 ℃) Temperature range: -55 ℃~+125 ℃ 3590S wirewound potentiometer Total mechanical stroke: 3600 ° ± 10 °
BONENS WXD4-23-3W Multi-turn Winding Potentiometer 1K 2K2 3K3 4K7 5K6 10K 15K 22K 47K
1.Product Description WXD4-23 This product is suitable for telecommunications, electrical engineering, electronic instruments and equipment for precision adjustment of DC or low-frequency voltage and current. Resistance: 100Ω, 220Ω, 330Ω, 470Ω, 560Ω, 680Ω, 1K, 1K5, 2K2, 3K3, 4K7, 5K6, 6K8, 10K, 22K, 33K, 47K, 100K Shaft diameter: 6mm Shaft length: 25mm Outer diameter: 40mm Power: 3W Resistance error: +-5% Linear accuracy C: +-0.3% Number of laps: 10 laps Packing: 5pcs/box
BONENS IP67 Waterdichte potentiometer 3590S-2-103L 10k Ohm Precision Multi-turn Wirewound Potentiometer 2w 10 Turn
3590 precision multi turn wire wound potentiometer 10K ohm PRODUCT PACKAGING 25 pcs/board, 2 boards(50 pcs)/box,12boxs(600 pcs)large box PRODUCT DESCRIPTION Potentiometer type:Multi turn potentiometer Potentiometer material:wire wound model:3590S-2-103L Resistance: 10K Ω Permissible resistance range: ± 5% Electrical rotation angle: 3600 ° ± 10 °(10 turn) Rated power: 2W (70 ℃) Temperature range: -55 ℃~+125 ℃ 3590S wirewound potentiometer Total mechanical stroke: 3600 ° ± 10 °
WX118 Carbon Film Wirewound Potentiometer Single Turn 1K 2K 5K
WX118 Long Handle 50mm Wirewound Potentiometer 1K 2K 5K 10K 5% product name: WX118 Single turn carbon film rotary wirewound potentiometer 1K 2K 5K 10K 5% Long handle 50mm Short handle 20mm product description: Electrical characteristics Range of nominal resistance: 25Ω~25KΩ Resistance Tolerance: ±5% Terminal resistance:≤±0.2%R or 5Ω Peak Noise:≤100Ω Insulation resistance:≥ 200MΩ (100V AC) Withstand voltage:500V (DC or AC peak value) Electrical angle:258° ± 5 ° Environmental
Verstelbare weerstand wx14-12 3w 2k21k 2k2 3k3 4k7 20k 10k 22k 100r 470r
product name: WX14-12 single-turn wire winding potentiometer product description: The WX14-12 single-turn wire-wound potentiometer is a precision electronic component that adopts a single-turn wire-wound design, with stable resistance value and good adjustment performance. It is usually used in electronic instruments, instruments and electronic equipment, providing accurate resistance value adjustment function. This potentiometer has high mechanical durability and reliability
BONENS IP67 waterdicht 10 beurt Precision Multi-turn Rotary Wirewound Potentiometer met knop
3590 precision multi turn wire wound potentiometer 10K ohm PRODUCT PACKAGING 25 pcs/board, 2 boards(50 pcs)/box,12boxs(600 pcs)large box PRODUCT DESCRIPTION Potentiometer type:Multi turn potentiometer Potentiometer material:wire wound model:3590S-2-103L Resistance: 10K Ω Permissible resistance range: ± 5% Electrical rotation angle: 3600 ° ± 10 °(10 turn) Rated power: 2W (70 ℃) Temperature range: -55 ℃~+125 ℃ 3590S wirewound potentiometer Total mechanical stroke: 3600 ° ± 10 °

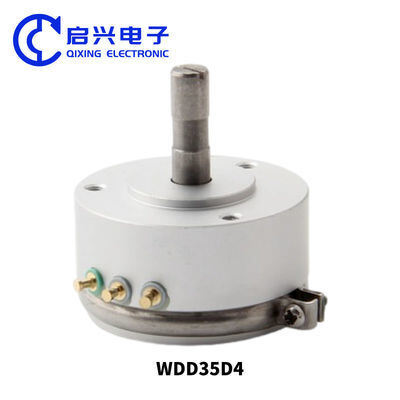

2W Precision Potentiometer WDD35D-4 geleidende kunststof potentiometer
product name Precision conductive plastic potentiometer WDD35D4 1K 2K 5K 10 K linear 0.1% 0.5% angular displacement sensor product description The WDD35 series products are made of hard aluminum alloy material as the outer shell, conductive plastic as the resistance material, and undergo molding and laser trimming for fine adjustment. The precious metal brush surge device, stainless steel high-speed bearings and other components ensure the high quality and performance of the
WX14-12 3W Single Roll Winding Potentiometer 1K 2K2 3K3 4K7 20K 10K 22K 100R 470R
WX14-11 WX14-12 wx14-32 single-turn wire-wound potentiometer 3W 1K 2K2 4K7 10K 20K 22K product name: WX14-12 3W single turn Wirewound Potentiometer 1K 2K2 3K3 4K7 20K 10K 22K 100R 470R product description: WX14-12 single-circle wire winding power unit, power of 3W, axis diameter 4mm, outer circular diameter 24mm, open hole 8.3mm, accuracy: ± 5% knob angle: 300 ° C, axis length: 20mm, resistance: 27Ω 33Ω 47Ω 56Ω 56Ω 56Ω 68Ω 100Ω 220Ω 270Ω 330Ω 470Ω 560Ω 680Ω 1K 1K5 2K3 4K7 5K1
WX14-12 3W Single-Turn Wire-Wound Potentiometer zonder vergrendeling 470 Ohm 1K 2K2 4K7 10K voor industriële toepassingen
WX14-11 WX14-12 wx14-32 single-turn wire-wound potentiometer 3W 1K 2K2 4K7 10K 20K 22K product name: WX14-12 3W single turn Wirewound Potentiometer 1K 2K2 3K3 4K7 20K 10K 22K 100R 470R product description: WX14-12 single-circle wire winding power unit, power of 3W, axis diameter 4mm, outer circular diameter 24mm, open hole 8.3mm, accuracy: ± 5% knob angle: 300 ° C, axis length: 20mm, resistance: 27Ω 33Ω 47Ω 56Ω 56Ω 56Ω 68Ω 100Ω 220Ω 270Ω 330Ω 470Ω 560Ω 680Ω 1K 1K5 2K3 4K7 5K1
