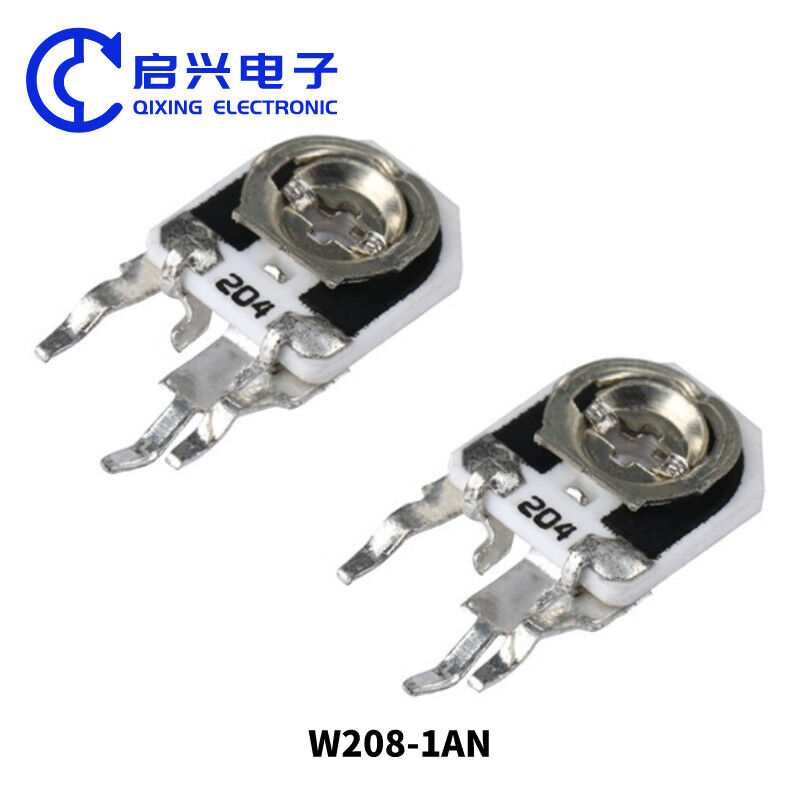

W208-serie verstelbare weerstand enkele spoel glazen keramische potentiometer 0,5w
W208-serie verstelbare weerstand enkele spoel glazen keramische potentiometer 0,5w
Key Attributes
Merknaam:BONENS
Model Number:W208-serie
Place of Origin:Sichuan, China
Standard Packaging:Kartonnen verpakkingen
Product Summary
Productdetails
Markeren:
0.5W Keramische constructies
,Verstelbare weerstand met enkele spoel
,Bestand tegen hoge temperaturen
Range Of Nominal Resistance:
100Ω~1MΩ
Resistance Tolerance:
±20%
Terminal Resistance:
≤±1%R or 10Ω
Contact Resistance Variation (CRV):
≤±3%R
Insulation Resistance:
≥ 500MΩ (100V AC)
Withstand Voltage:
250V (DC or AC peak value)
Effective Electrical Travel:
≥210°
Rated Power:
0.5W ( 300V max)
Temperature Range:
-55°C~ 125°C
TCR:
±250x10-6/°C
Collision (390m/s2, 4000 Times):
R≤±1%R
Vibration (10-500hz, 0.75mm, 6h):
R≤±1%R, Uab/Uac≤±2%R, Electrical break≤100S
Temperature Variation (-55°C/30min, 125°C/30min, 5 Cycles):
R≤±2%R, Uab/Uac≤±2%R
Climate Category (iec68-2-2):
R≤± (10%R 0.1), Insulation Resistance ≥100M
Electrical Endurance (0.5w, 1000h):
R≤± (5%R 0.1)
Mechanical Endurance (200 Cycles):
R≤± (20%R 0.5)
Steady Damp Heat (iec68-2-3, Ca, 96h):
R≤± (10%R 0.1), Insulation Resistance≥100M
Total Mechanical Travel:
≥250°
Starting Torque:
≤35mN.m
Stopper Torque:
≤75mN.m
Soldering Conditions:
240℃-260℃（5 seconds)
Resistance Range:
100 ohm tot 1M
Rated Power:
0,5 W
Technology:
Glas geglazuurd keramiek
Application:
Audioversterkers, recorders
Productomschrijving
Gedetailleerde specificaties en kenmerken
|
|
||||||
|
|
||||||
|
|
||||||
|
|
||||||
|
|
||||||
|
|
|
|||||
