rf power resistor
RIG Isolatie Radiofrequentie Resistor 1000w 100ohm RF Flange Resistor
RIG isolation radio frequency resistor 1000w 100ohm RF Resistor Flange resistor product name: Electronic component passive component RF resistor 50 ohm 100 ohm 1000W flange installation terminal resistor ceramic power resistor product description: Description: RIG high power resistance is also called RIG RF resistor, RF RF resistor, high frequency RF resistor, flange RF resistor, load RF resistor, RF resistor and high power microband resistors Product Features: 1.Small volume
Hoogvermogend RF-flensresistor 1200W met keramische samenstelling en een breed werktemperatuurbereik van -55°C tot +165°C
Product Description 100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor picture 100W 150W 200W 250W 400W 800W 1000W 500W high power Terminals 10ohm 50ohm rf resistor drawing All RF flange resistor can do with one terminal or Two terminals 100W one terminal resistor drawing 150W two terminals rf resistor drawing 250W 10ohm 50ohm two terminals rf resistor drawing 400W 10ohm 50ohm two terminals rf resistor drawing 500W 10ohm 50ohm one terminals

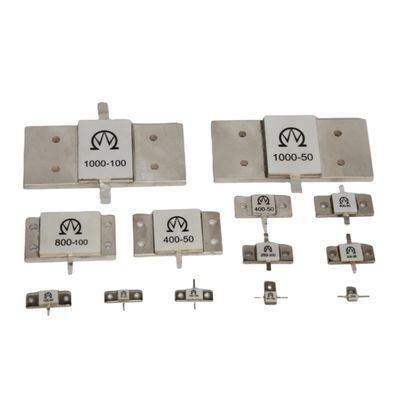

600W 500W 400W keramische RF-flensweerstand met hoog vermogen met 50 Ohm en 0 ~ 2 GHz-frequentie
Product Description RIG High Power Flange Resistor 100W-1000W rf resistor 100 ohm 800W 100 ohms terminal800W 50 ohms terminal 800W 50 ohms resistors800W 100 ohms resistors 800W terminal Dimension 800W Resistors Dimension BONENSSmall size, high power, stable and reliable performance, easy installation, pls contact me with the dimensions Electrical CharacteristicsRange of nominal resistance----- 1Ω-500ΩResistance tolerance-------------- ±5%Frequency range------------------ 0
250 Watt 100 Ohm RF Termination Resistor met koper-nikkelgeplatte hitteafvoer voor 0 ~ 1,5 GHz Frequentie en -55 ~ + 125 °C Temperatuurbereik
Product Description 250 Watt 100 ohms RF Termination resistor Other commonly used ratings powerFor enquiries, please specify : 1.power and resistance 2. need single lead or double leads Specification ElectricalCharacteristicsRange of nominal resistance10Ω~500ΩResistance tolerance±2%, ±5%Frequency0 ~2GHZWistand Voltage500V/1mmInsulation resistance≥ 1GΩStanding wave rate1.2-1.3EnvironmentCharacteristicsRated power1-1200WTemperature range-55°C~+125°CTCR≤±200PPM/°CTemperature
RF Ceramic Resistor 500W 500 Ohm with BeO and Cu Material for 0~2 GHz Frequency and 1.2~1.3 Standing Wave
RF Ceramic Resistor 500W 500 Ohm Resistor Product Description Power Load Sheets, RF Resistors, Flange Resistors, Microstrip Resistors, RF Thick Film Resistors, Microwave Resistors, Load Resistors, Attenuation Resistors, Coupler Resistors Product Features and Uses Small volume, large power capacity, good high-frequency characteristics, reliable performance, and convenient installation Suitable for power distributor, isolation resistance and terminal load resistor RIG High
1000W 0,1 Ohm Keramische samenstelling Hoge vermogen RF flensresistor
1000W keramische flensweerstand (0,1Ω-100kΩ) met ±10% tolerantie. Beschikt over een compact formaat, hoog vermogen, stabiele prestaties en een brede bedrijfstemperatuur (-55℃~+165℃). Ideaal voor RF-circuits, zenders en communicatieapparatuur. Aangepaste montageopties beschikbaar.
Hoogvermogen Flensweerstand met 1.2~1.3 Standing Wave Ratio Plastic Behuizing en Cermet Technologie
Product Description Power Load Sheets, RF Resistors, Flange Resistors, Microstrip Resistors, RF Thick Film Resistors, Microwave Resistors, Load Resistors, Attenuation Resistors, Coupler Resistors Product features and uses 1.Small volume, large power capacity, good high-frequency characteristics, reliable performance, and convenient installation.2.Suitable for power distributor, isolation resistance and terminal load resistor. RIG high-power resistance features: excellent high
Hoogvermogende RF-weerstand met 1-500Ω weerstand ±5% tolerantie en 0-2 GHz frequentie voor toepassingen op flensteren
Product Description Power Load Sheets, RF Resistors, Flange Resistors, Microstrip Resistors, RF Thick Film Resistors, Microwave Resistors, Load Resistors, Attenuation Resistors, Coupler Resistors Product features and uses1.Small volume, large power capacity, good high-frequency characteristics, reliable performance, and convenient installation.2.Suitable for power distributor, isolation resistance and terminal load resistor. RIG high-power resistance features: excellent high
800W 50 Ohm RF Flange Mount Resistor met 0~2GHz Frequentie en 1,2-1.3 Standing Wave voor communicatie-toepassingen
Specification Electrical CharacteristicsRange of nominal resistance50ΩResistance tolerance±5%Frequency range0~1GHzStanding wave ratio1.2~1.3Insulation resistance≥ 1GΩWithstand voltage500V/1 mm (Substrate thickness)Environment CharacteristicsRated power1000W (70°C)Temperature range -55°C~+165°CTCR≤±200PPM/°CTemperature shock (-55°C/+125°C, 3 times)ΔR≤±5%RMoisture proof (GJB306A-96-Method106)ΔR≤±5%RVibration (10-500HZ, 0.75mm, 6h)ΔR≤±3%R, No mechanical damageTest at low
