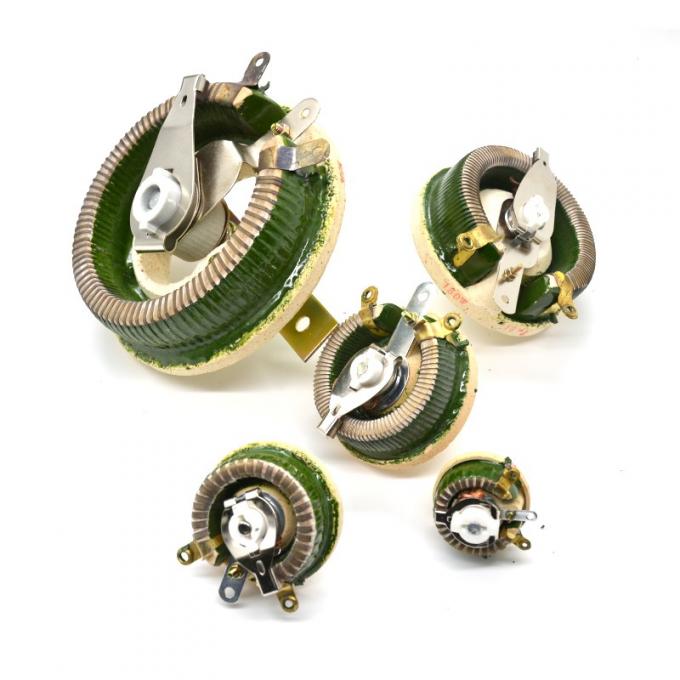

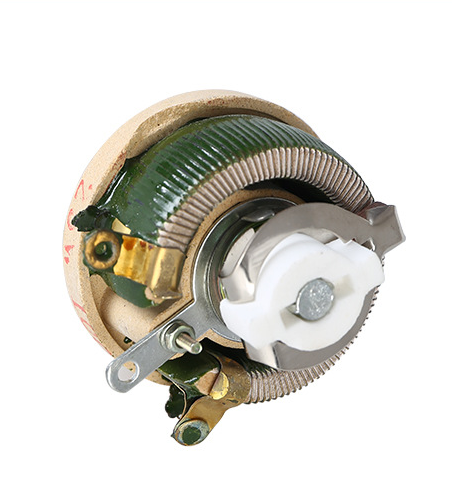

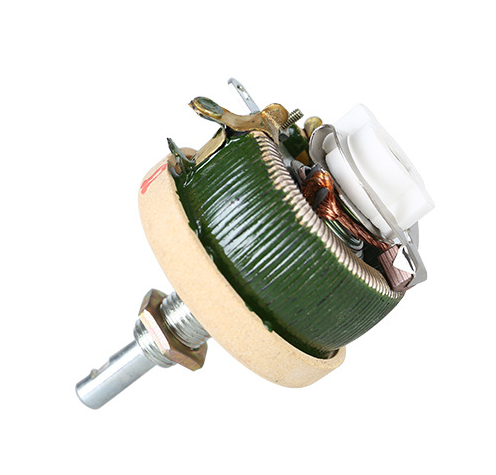

High Power Wirewound Potentiometer Rotary Rheostat Disk Keramische variabele weerstand 25W 50W BC1
High Power Wirewound Potentiometer Rotary Rheostat Disk Keramische variabele weerstand 25W 50W BC1
Key Attributes
Merknaam:BONENS
Model Number:BC1
Place of Origin:Sichuan, China
Standard Packaging:Kartonnen verpakkingen
Product Summary
Variabele rheostaat 50w Gegevenslijst: Elektrische kenmerken: De nominale weerstandsbereik.........1Ω~10KΩTolerantie van weerstand......... ± 10%Endweerstand.........≤ 0,2% of 1ΩIsolatieweerstand..... ≥ 100mΩ ((500Vdc)Maximale verwarmingstemperatuur.........350° Omgevingskenmerken: Nominaal vermogen ...
Productdetails
Markeren:
Roterende rheostaattype
,25W 50W
,Keramische schijf
Terminal Resistance:
≤ 0,2% of 1Ω
Insulation Resistance:
≥ 100mΩ ((500Vdc)
Dimensions:
6 mm x 9 mm
Temperature Range:
-55°C tot 350°C
Rated Power:
25 W~500 W
Resistance Error Error:
± 10%
Packaging Type:
Document pakket
Operating Temperature:
-55°~+400°
Mounting Type:
Door het gat
Termination Style:
axiale
Temperature Coefficient:
±100ppm/°C
Package/Case:
Ronde 6mm
Head Mechanical Itinerary:
300°±1 Vlot draaien
Power Rating:
0.25W
Dampness:
40 ± 2°,RH:95%-98% 48h△R≤± 3%R,R12100MΩ
Nominal Resistance Range:
1 tot 10K ohm
Resistance Tolerance:
±10%
Rated Power:
25W, 50W
Type:
Roterende wirewound potentiometer
Productomschrijving
Gedetailleerde specificaties en kenmerken
|

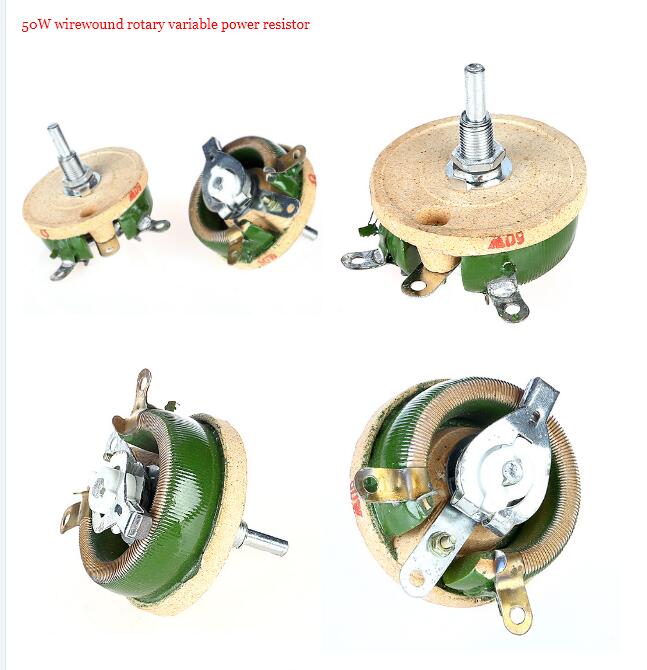

Variabele rheostaat 50w
|
    |
|
Gegevenslijst:
|
|
Elektrische kenmerken:
De nominale weerstandsbereik.........1Ω~10KΩ Tolerantie van weerstand......... ± 10% Endweerstand.........≤ 0,2% of 1Ω Isolatieweerstand..... ≥ 100mΩ ((500Vdc) Maximale verwarmingstemperatuur.........350° Omgevingskenmerken: Nominaal vermogen 50 W-500 W @ 85°,of @ 400 Temperatuurbereik.................-55°~400° Trillingen 10 tot 200 Hz, 40m/S2, 3 uur ΔR≤±3%R Thermische cycli: -55°,30min,85°,30min Cyclus 3 keer,ΔR≤±3%R, R1≥500MΩ Vocht 40 ± 2°,RH: 95% - 98% 48h ΔR≤ ± 3%R, R1≥ 100MΩ Botsing 60 tot 100 keer per minuut, 150 m/s2, 4000 keer |
|

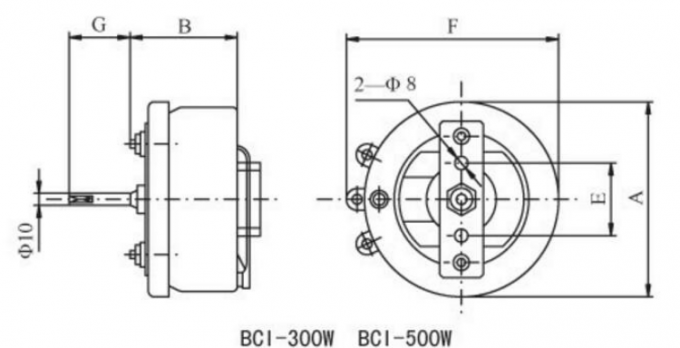

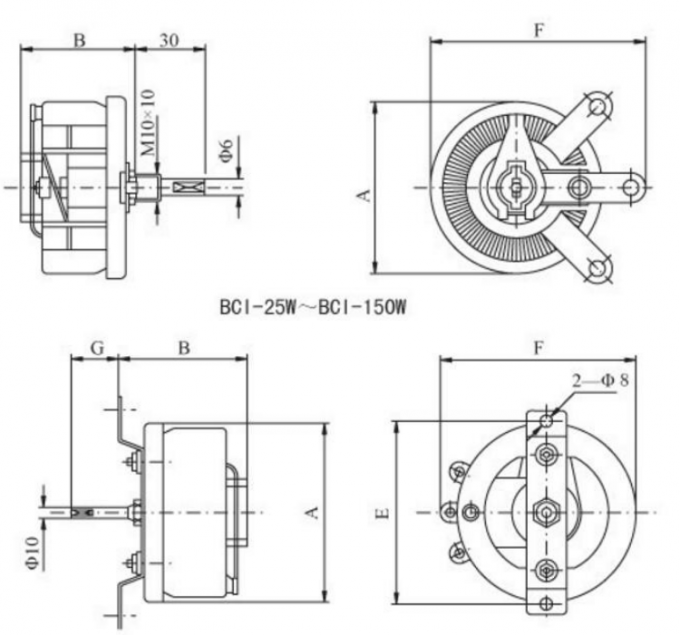

Grootte van de installatie:
|
 |
 |
Specificatie
|
Nominaal vermogen ((W)
|
Een
|
B.
|
F
|
|
BC1-25W
|
44
|
43
|
50
|
|
BC1-50W
|
66
|
43
|
75
|
|
BC1-100W
|
84
|
43
|
95
|
|
BC1-150W
|
106
|
48
|
120
|
|
BC1-300W
|
170
|
74
|
180
|
|
BC1-500W
|
210
|
60
|
230
|
|
BC1-50W/2
|
80
|
100
|
75
|
|
BC1-100W/2
|
97
|
112
|
95
|
|
BC1-150W/2
|
135
|
120
|
120
|
|
BC1-300W/2
|
175
|
165
|
180
|
|
BC1-500W/2
|
220
|
165
|
230
|
|
BC1-150W/3
|
170
|
220
|
120
|
|
BC1-300W/3
|
175
|
275
|
180
|
|
BC1-500W/3
|
220
|
275
|
230
|

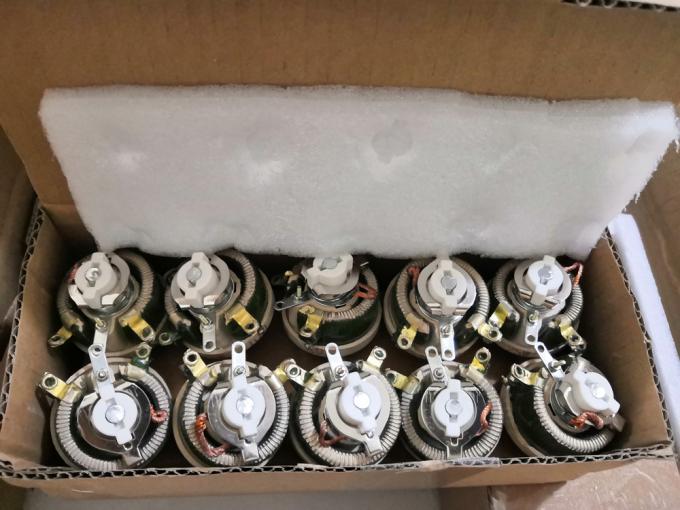

Verpakking en levering
 |

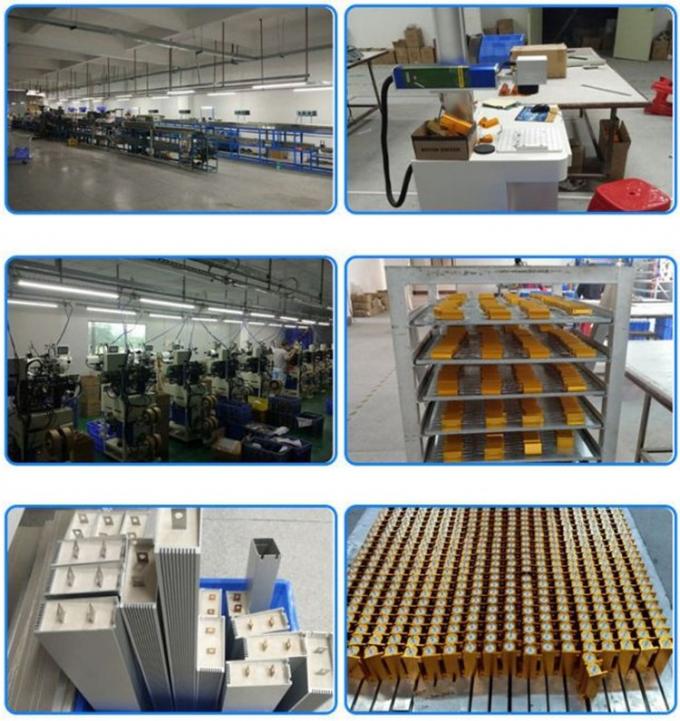

Profiel van het bedrijf
 |
 |
 |
